Hot Eachine EV800DM Varifocal 5.8G 40CH Diversity FPV Goggles with HD DVR 3 Inch 900x600 Video Headset RC Camera Drones Part

$93.99
Eachine EV800DM Varifocal 5.8G 40CH Diversity FPV Goggles with HD DVR 3 Inch 900*600 Video Headset Build in 2000mAh Battery Features: Built-in with very HD DVR up to 720*576px resolution Diversity RaceBand 40ch Auto-Searching Two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recor ding(please use C10 very speed card...
Sale price

Product Info

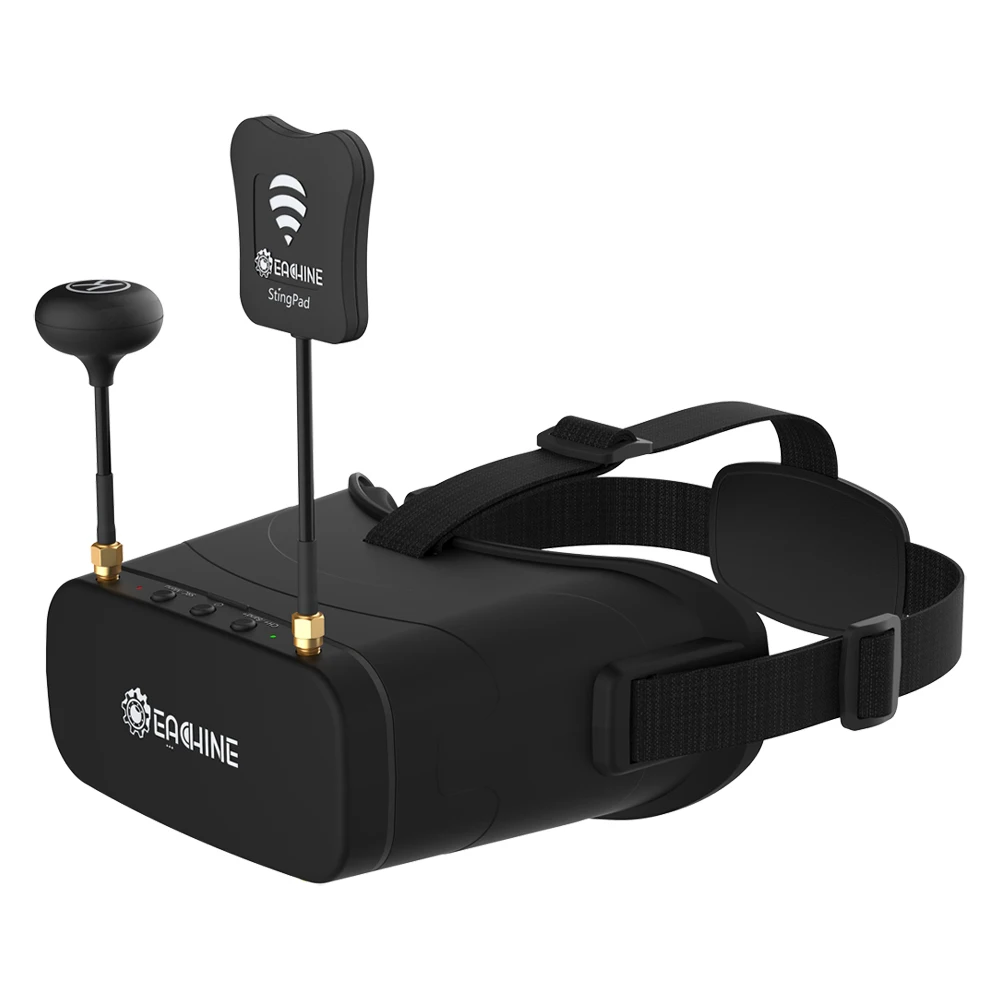

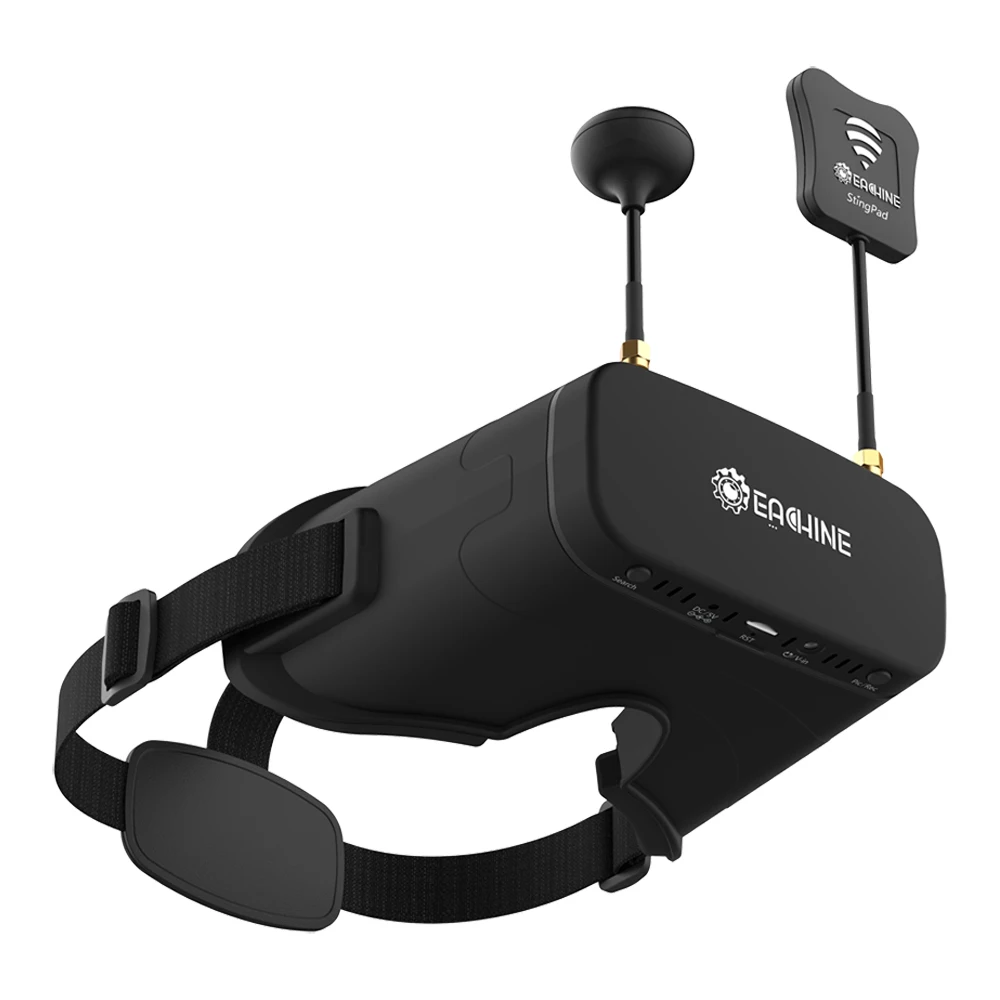

Eachine EV800DM Varifocal 5.8G 40CH Diversity FPV Goggles with HD DVR 3 Inch 900*600 Video Headset Build in 2000mAh Battery

Features:
Built-in with very HD DVR up to 720*576px resolution
Diversity RaceBand 40ch Auto-Searching
Two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recor ding(please use C10 very speed card to ensure the full frame recor ding)
Work friendly with player-OSD, no block on the important flying OSD information;
Focal length adjustable design;Room for eyeglasses
HD high brightness 3 inch LCD specially tuned for FPV racing;
Diversity function, Built-in very sensitive 5.8GHz 40ch receiver module, with RaceRand;
Advanced auto-searching function and the working frequency show on screen;
Built-in 3.8V 2000mAh battery, each full charge offer 2.2 hours working time;
Wide scope re-charge voltage 5-180V;
Accept 2S or 3S batteries as back-up po wer source, to prolong the working time;
Nice ergonomic design and fit different faces;
very-wide visible angle up to 82 degree;
92% transparent lens adopted, no distort, no blur on the edge of screen;
Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game;
3 Inch 900*600px HD high brightness LCD

Description :
Brand Name : EACHINE
Item Name : EV800DM


Appearance
Dimension: 150*170*80mm
Weight: 320g without antenna
Belt : three-way adjustable belt


Specification
Build in DVR
recor d up to 720*576px full frame rate video, no frame lost (C10 card required)
Re play in MENU
Require C10 card to recor d full frame rate

Diversity
-90dB very sensitiveness in 2pcs RX5808 PRO modules
Great performance when two types (Linear and Omni) antennas are used


Display
Screen size: 3.0 inch
Screen resolution: 900*600(No blur after enlarge by the lens)
Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
Ratio : 4:3
View Angle: 140/120 degree(Horizontal/Vertical)

Lens
3x boost of the video to acquire intense feel-in-there video;
92% transparent rate distort if light;

Varifocal
20mm focal length adjustable;
Multi stop points design for vertical individual user adjust;
For more users with different eyesight

Glasses Fit
Fit for wear with glasses;
Glasses Fit Size; 140mm*40mm;
Focal length need to be reset when wear glasses



Battery
Built-in 3.8V/2000mAh battery;
Each battery circle offer around 2.2hr working time;
5-18V wide scope recharging voltage scope, typical recharging with 5V/2A
Charger : 5V, 2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as back-up po wer t to have long working time.



Frequencies (5.8GHz, with RaceBand)

CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
GROUP
A or FR1 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ
B or FR2 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ
C or FR3 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ
D or FR4 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ
R or FR5 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ



Package Included :
1 x EV800DM 40CH 5.8G Varifocal FPV Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x USB po wer Charging Cable
1 x AV In/Out cable
1 x User Manual







?
